How to Inspect Your Own House, Part 6: Plumbing

If it's leaking, fix it. The end.

Ok, I'm kidding. Today I'm going to share some home inspection tips and tricks that homeowners can use to identify plumbing problems. You'll want to use a good flashlight for your plumbing inspection, as a lot of this work involves looking underneath sinks and tub drains.

Most homeowners already know about the more obvious leaks under bathroom sinks, but to really test your sink for leaks, fill the sink with water and then let it drain all at once. This test will force a large slug of water through the drain, and will often identify leaks that wouldn't otherwise be seen. Carefully watch the drain while performing this test. One of the most common leak locations at bathroom sinks is at the drain stopper; fixing this leak is usually as simple as tightening the nut.

If the bathroom sink drains slowly, it's usually the result of hair in the drain. Fix this by pulling the hair out with a Zip-It tool. What's a Zip-It? I'm glad you asked. It's an inexpensive, effective, and easy-to-use drain cleaning product invented by a Minnesotan. Click the following link to find out, but prepare yourself to see some absolutely disgusting photos of hairballs removed from drains: http://zipitclean.com/

Stand at the toilet with the front of the bowl between your legs, and give the toilet a little nudge with your shin to make sure it doesn't rock or swivel. A loose toilet can lead to a leaking toilet.

Flush the toilet several times times and check behind, around, and under the toilet (if possible) for any leaks.

If you have a toilet that clogs frequently, replace it. I recommend using Consumer Reports to help decide on a toilet. Their team tirelessly tests toilets in the most tasteful manner possible to figure out which ones have the best flushing ability. I've trusted them in the past, and they haven't let me down. I'll leave it at that.

I wrote a whole blog post about identifying shower leaks over five years ago, and not much has changed since: http://www.structuretech1.com/2009/07/finding-shower-leaks/ .

To inspect bath tub drains, first make sure there is access to the drain. Sometimes this will be in the form of a large access panel in the room behind the tub, sometimes it will be an access panel at the ceiling below, and sometimes it will simply be a return register grill screwed to the wall that covers a hole in the wall. The photo below shows a comically small access hole for the bath tub drain at a recent new construction inspection in Otsego.

This next photo shows a more traditional, old-school access panel behind a basement bath tub. The faucet was leaking profusely, but there were no rooms below, so the homeowner didn't know it was leaking.

Once you've established that there is access to inspect the bath tub drain, fill the tub with water all the way to the overflow, and watch the overflow from the back side to make sure that water doesn't leak out. A leaking bath tub overflow can lead to a big mess, and this is one test that is specifically excluded by home inspection standards of practice. After you've made sure the overflow doesn't leak, pull the drain at the tub and make sure the drain itself doesn't leak. If there are any leaks at the faucet, you'll probably find them while doing this test.

The other common issue with showers and tubs is a slow drain, again, usually because of hair. Get a Zip-It.

For the kitchen sink, fill up both sides of the sink with water, pull the stoppers, then immediately turn on the garbage disposer if present. This will force a lot of water through the drain all at once, and will often identify leaks and drain problems that nobody knew about. Sometimes this test will even force water to shoot out of a crack in the side of the garbage disposer.

If there's a problem with the sink drain, water will typically back up on the side of the sink that doesn't have a disposer, as shown in the photo below.

The culprit is typically old galvanized steel drain lines, which accumulate sediment on the insides of the pipes, making the internal diameter smaller and smaller over time, to the point where the fixtures drain very slowly, or not at all. The fix for this condition is to replace the drains, which is an expensive repair.

This test on the kitchen sink will also sometimes expose problems that show up in other areas; we've caused water to back up through reverse osmosis water dispensers, basement bathroom sinks, basement floor drains, basement laundry sinks, and basement standpipes by doing this test. After conducting this test, go downstairs and make sure none of the other plumbing fixtures have backed up. If they have, there's a problem with the drains.

I have a few short clips of these things happening in my "47 Home Inspection Issues in Under 3 Minutes" video. At the 12 second mark, you'll see a basement bathroom sink overflowing (I had fun cleaning that up), a standpipe overflowing (Milind had fun cleaning that up), two more clips that aren't related, then a water dispenser overflowing at a kitchen sink.

The most common issue with a floor drain is a missing clean-out plug. This will allow hazardous, stinky sewer gas into the home. For information about how to identify and correct this condition, check out my blog post on floor drain basics.

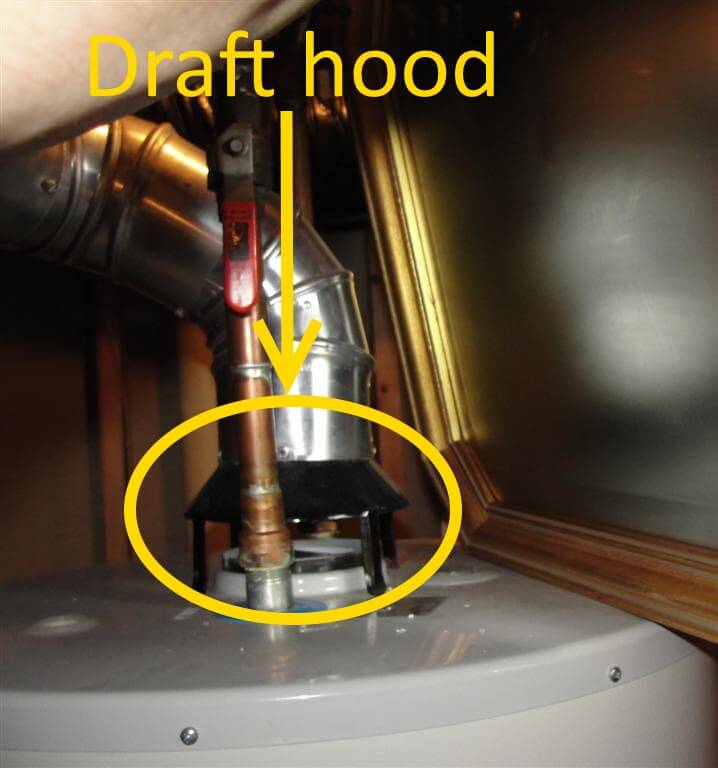

I've already blogged about water heaters ad nauseam, so I'll make this short and sweet. Perhaps the easiest thing to check on your water heater is to make sure it's set to a safe temperature, which is about 120° - 125° Fahrenheit. If your water heater has a draft hood (pictured at right), make sure your water heater drafts properly under a worst-case scenario. Also, check the relief valve discharge tube for signs of leaking. Leaking can lead to corrosion, and corrosion can lead to failure (and failure can lead to the dark side).

If your water heater is leaking from the bottom, it's time for a new water heater.

Here are several other blog posts related to water heaters:

That's all for this week. Next week I'll show you how to identify and correct the most common plumbing cross-connections in your home. Click on any of the links below to see the past topics in this series:

Author: Reuben Saltzman, Structure Tech Home Inspections
