Get to know Minnesota's new plumbing code

Minnesota adopted a new state plumbing code on January 23, 2016. We've always had a home-grown plumbing code, but for the first time Minnesota has adopted a national plumbing code — the 2012 UPC — along with our standard list of amendments.

The Minnesota amendments to the 2012 UPC can be found here, but it's all fairly useless information without the 2012 UPC. Thankfully, there's a single book that combines the 2012 UPC along with the Minnesota amendments, which can be purchased here: Minnesota State Plumbing Code Book. This code is also available online for free in pdf format here: 2015 Minnesota State Plumbing Code.

I've paged through the new plumbing code, and there are a ton of changes. I couldn't possibly identify every change that has been made, but I've put together a list of some noteworthy stuff. Most of these are changes, but some of them are simply wording changes that make things clearer. This new code is certainly easier to read and understand, as far as I'm concerned. If I have any of these changes wrong, please email me or leave a comment.

There are some sections that I haven't yet figured out how to interpret, such as a new annual testing requirement for backflow prevention assemblies (603.4.2). So I'll probably follow up with one or more blog posts later this year, highlighting some of these changes as I learn more about them. The text in italics below are partial quotes from the new plumbing code.

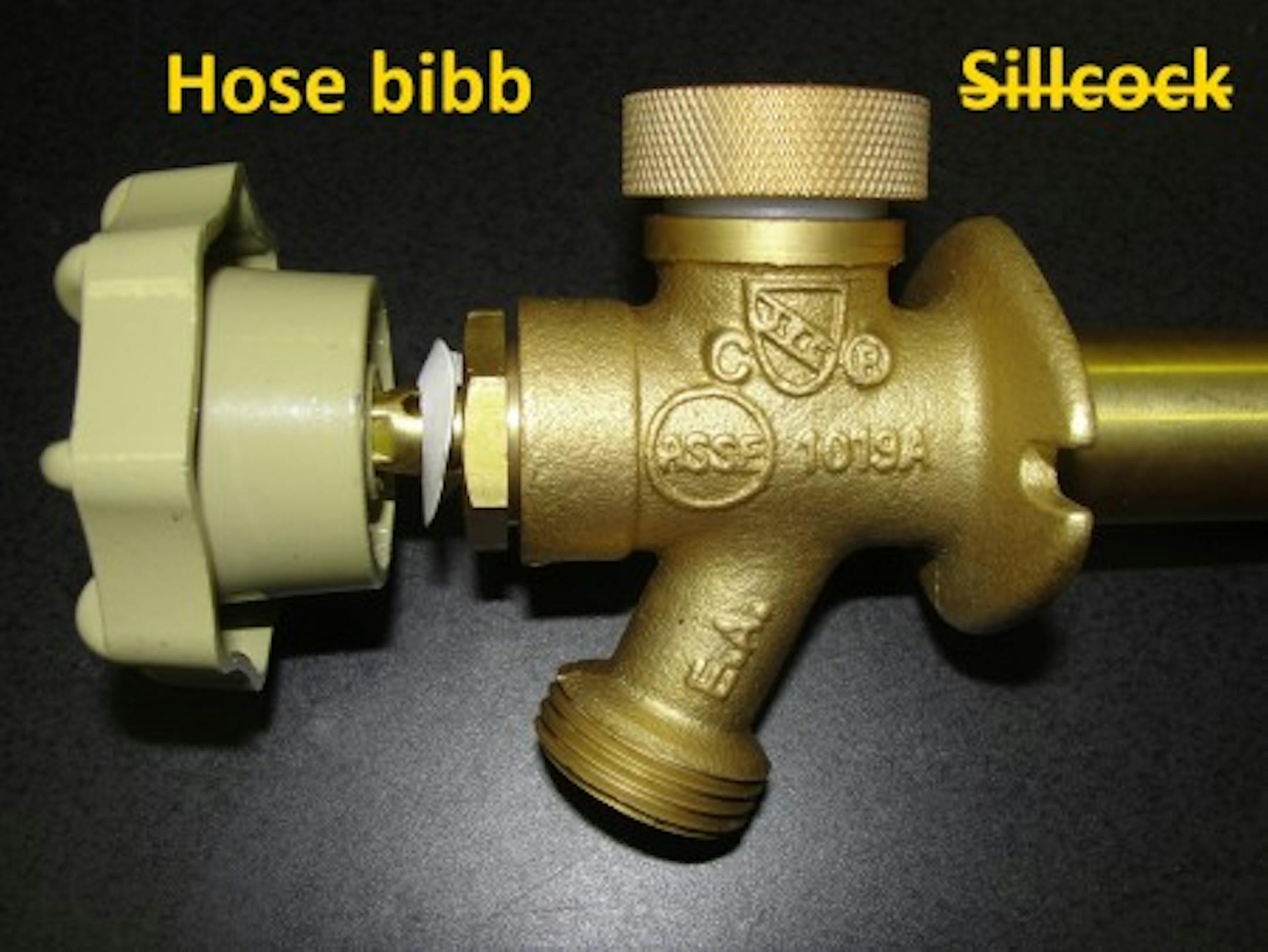

The old Minnesota plumbing code referred to outdoor faucets as "sillcocks." I frequently used this language in blog posts and home inspection reports in an attempt to be consistent. I can't find the word "sillcock" anywhere in the new plumbing code, so I'll be calling them hose bibbs from now on.

The rules for hangers and supports have changed a ton. Besides the spacing changes, plastic pipes that convey waste from dishwashers or similar hot water wastes no longer need to be supported on continuous metal or wood strips. See Table 313.1

The minimum size for shower drains used to be 1-½".

The old plumbing code didn't specify the minimum width for a shower door.

Shower doors shall open so as to maintain not less than a 22 inch (559 mm) unobstructed opening for egress.

My guess is that this requirement is only for shower receptors built on-site, but it's not clear. The code says that showers need to be flood tested by filling the shower with water to the level of the rough threshold. It's not clear how long this test needs to take place for, but I've been told it's a minimum of 24 hours.

Shower receptors shall be tested for watertightness by filling with water to the level of the rough threshold. The test plug shall be so place that both upper and under sides of the subpan shall be subjected to the test at the point where it is clamped to the drain.

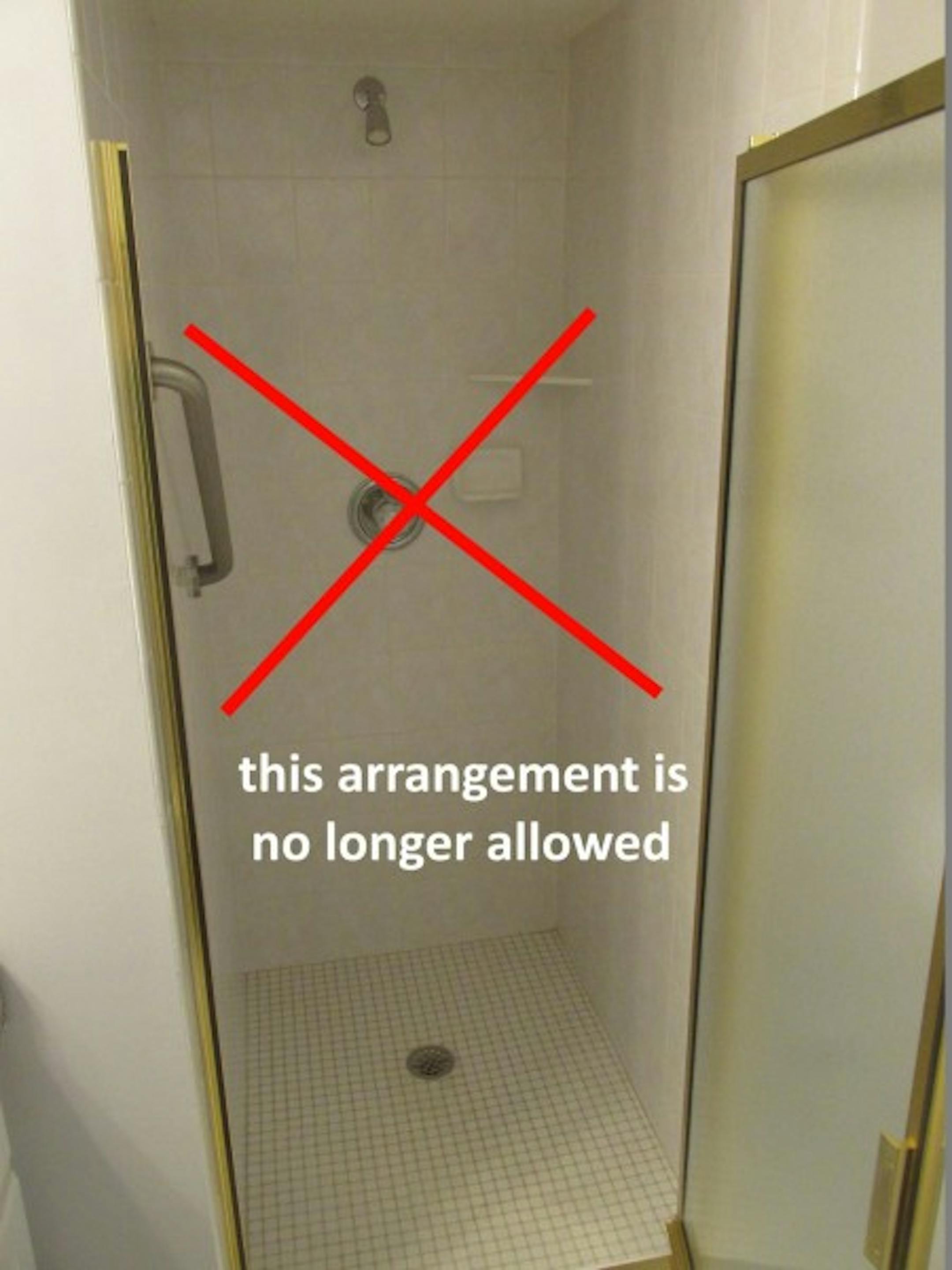

OK, maybe I'm paraphrasing, but that's what it comes down to. From now on, the shower needs to be designed so one needn't take a shower to test the shower.

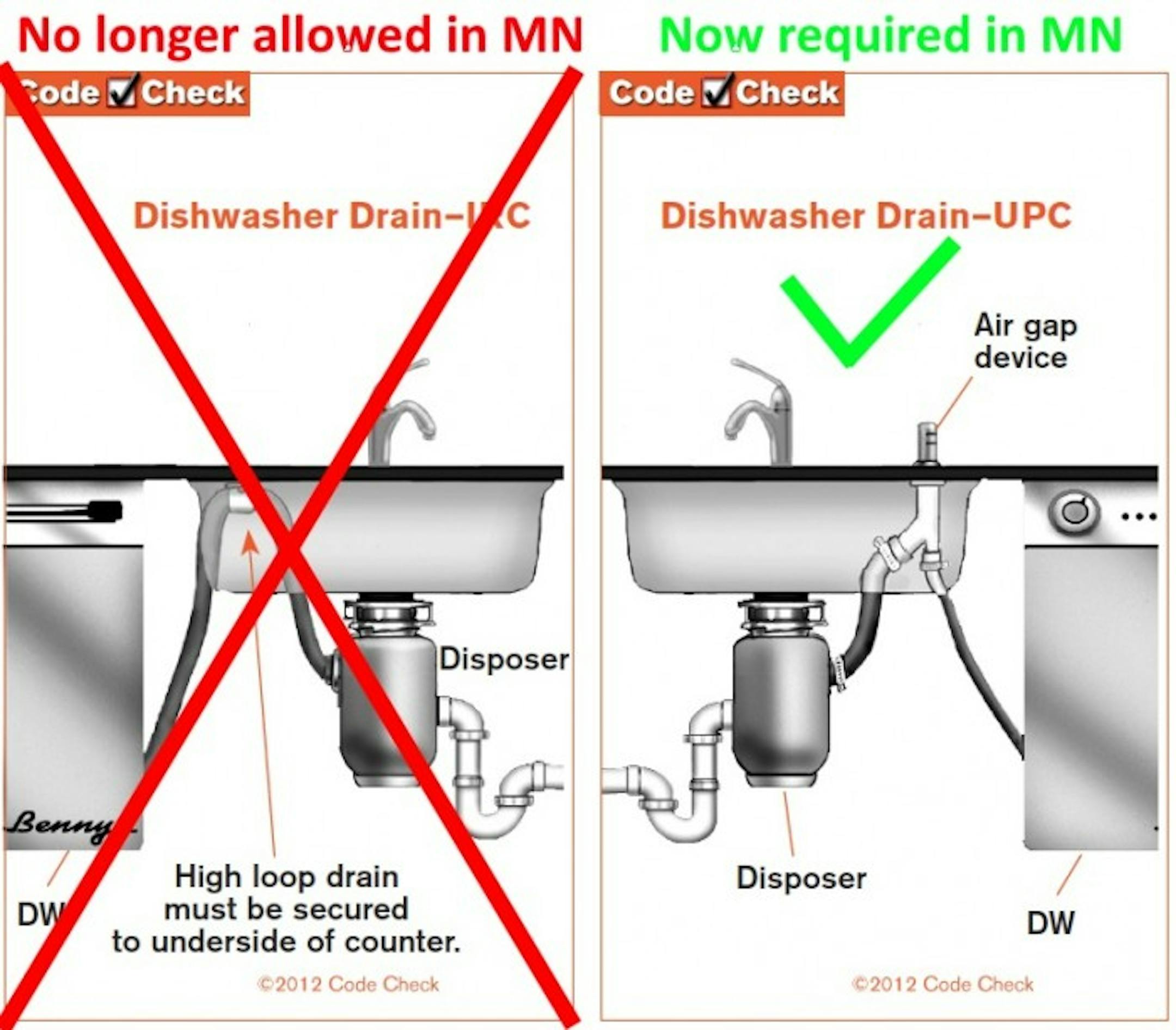

You read that right (and yes, I paraphrased again). Air gaps are now required on dishwasher drains. I don't know how plumbing inspectors will be enforcing this new requirement, but the plumbers I've talked to say that an air gap will be required any time a dishwasher is installed or replaced. Sorry, but yuck.

The diagrams above were supplied by the fine folks at Code Check, who gave me permission to mark them up.

No domestic dishwashing machine shall be directly connected to a drainage system or food waste disposer without the use of an approved dishwasher air gap fitting on the discharge side of the dishwashing machine. Listed air gaps shall be installed with the flood-level (FL) marking at or above the flood level of the sink or drainboard, whichever is higher.

When a water heater is installed above an area where a leak would cause major damage, an emergency drain pan is now required. Section 507.5 of the code also prohibits the relief valve from discharging into this drain pan. This won't affect most Minnesota homeowners, because most water heaters are installed on a concrete floor in the basement.

Where a water heater is located in an attic, attic-ceiling assembly, floor-ceiling assembly, or floor-subfloor assembly where damage results from a leaking water heaters, a watertight pan of corrosion-resistant materials shall be installed beneath the water heater with not less than ¾ of an inch (20 mm) diameter drain to an approved location.

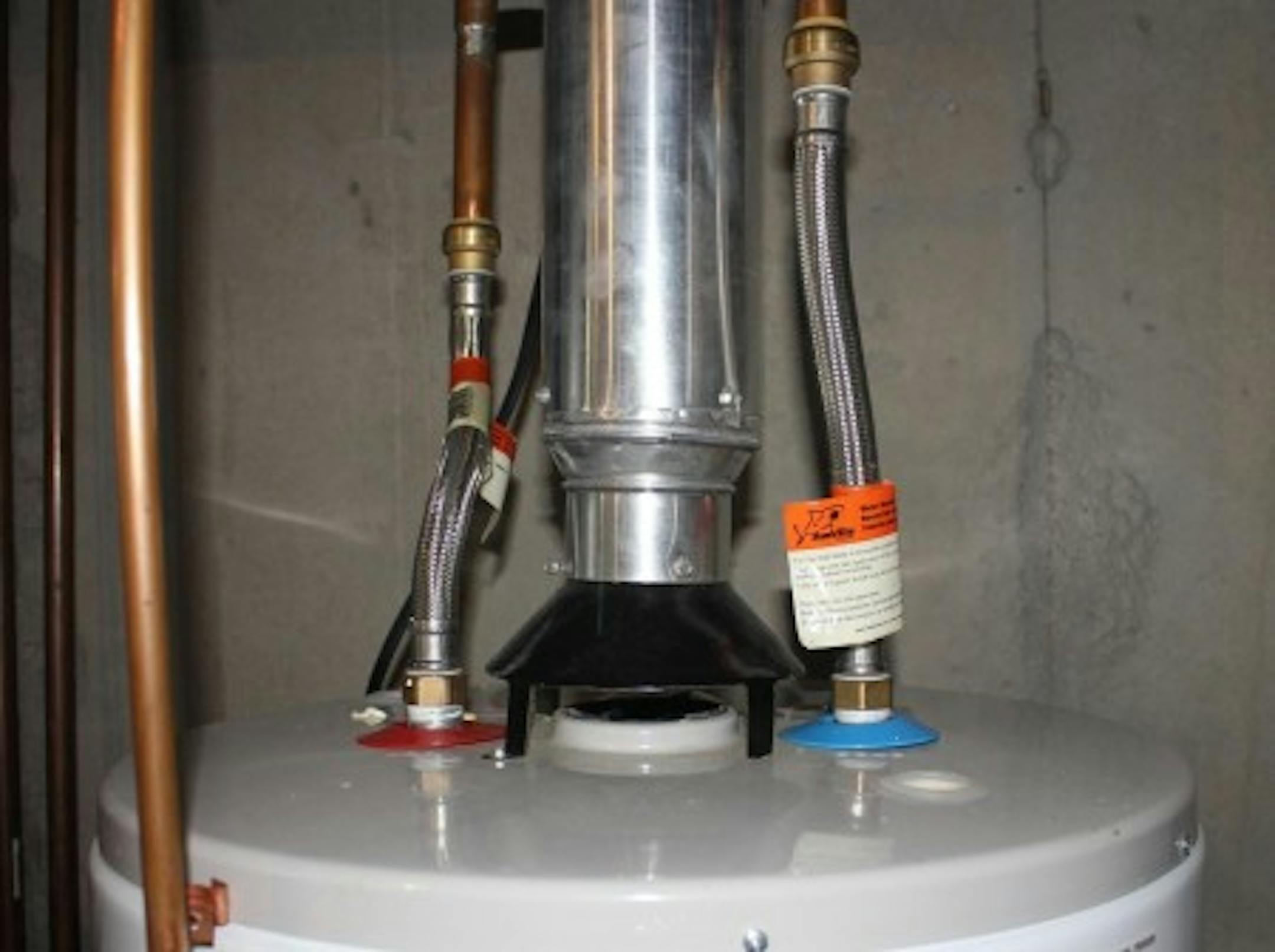

Flexible metallic water heater connectors or reinforced flexible water heater connectors connecting water heating to the piping system shall be in accordance with the applicable standards referenced in Table 1401.1. Copper or stainless steel flexible connectors shall not exceed 24 inches (610 mm).

When dissimilar metals are connected to each other and water passes between them, a galvanic reaction can occur, causing the less noble metal to corrode. I know this is a big deal in some parts of the country, but not here in Minnesota. I usually see connections between galvanized steel and copper holding up just fine over long periods of time, but they're no longer allowed. To connect copper tubing to threaded pipe joints, there must now be a brass adapter, a 6-inch brass nipple, a dielectric fitting, or a dielectric union used. There's quite a bit of text to this code section, so I won't quote it here.

There has been much discussion over what constitutes acceptable materials for relief valve discharge tubes, but the new plumbing code makes it quite clear. Piping and fittings that make up the discharge tube may be made from galvanized steel, rigid copper tubing, CPVC, or polypropylene. Or the discharge tube may be a listed relief valve drain tube.

Relief valves located inside a building shall be provided with: (1) a drain that is not smaller than the relief valve outlet and piping and fittings made of galvanized steel, hard-drawn copper, CPVC, or PP; or (2) a listed relief valve drain tube with fittings.

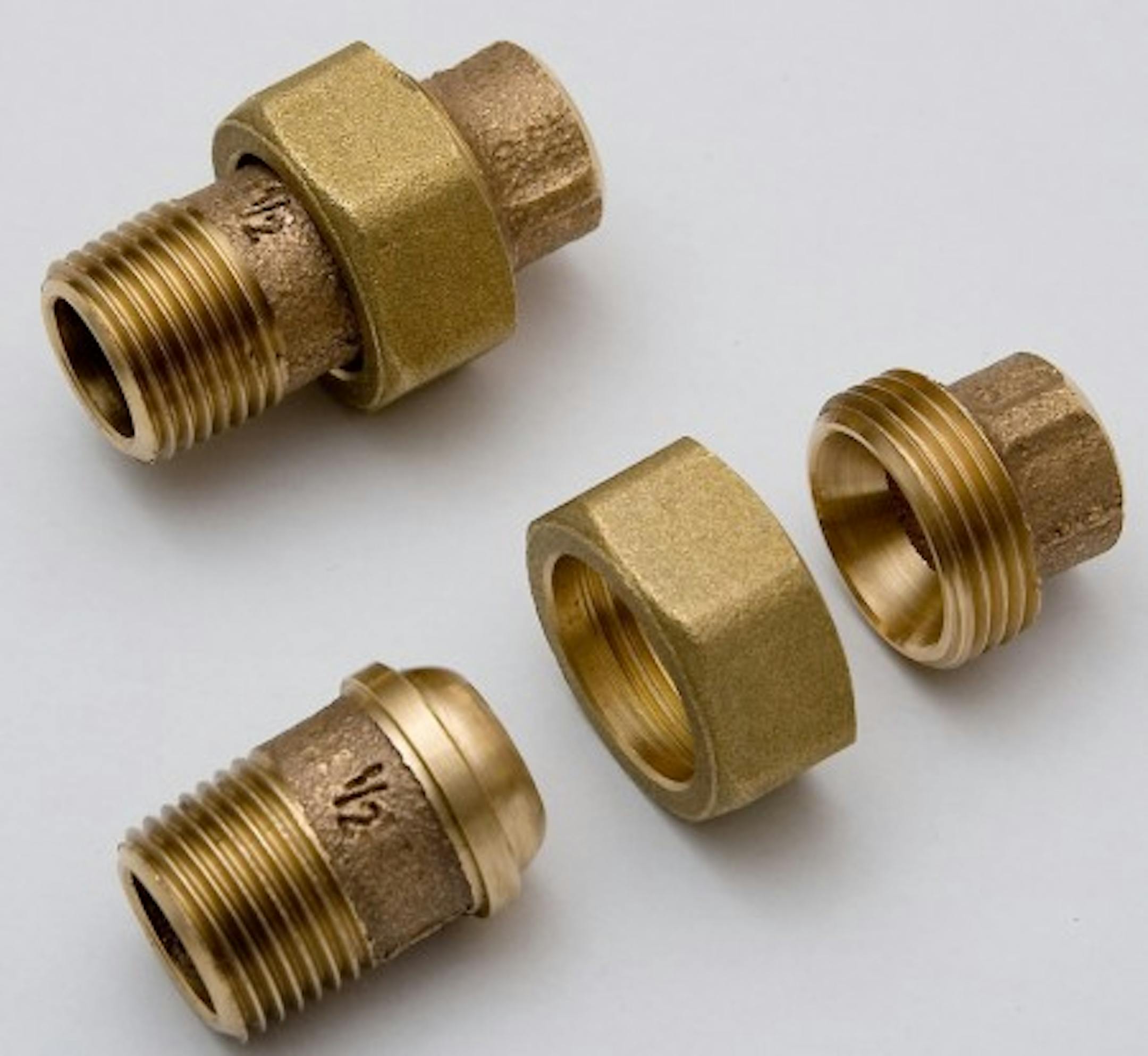

Unions makes it far easier to replace a water heater, and now they're required. It used to be acceptable to simply solder copper tubing into place on a water heater, which meant that replacing a water heater always required cutting and soldering new copper tubing for the water lines, but a union makes for a quick and easy disconnection point that only requires a pair of wrenches.

The old Minnesota plumbing code required ¾-inch piping here. See Table 610.3

This is trivial, as the old code simply required primer of a contrasting color. But still. Go Purple.

Where surfaces to be joined are cleaned and free of dirt, moisture, oil, and other foreign material, apply primer purple in color in accordance with ASTM F 656.

The old code allowed a maximum of 4 feet. See note 2 in Table 1002.2

That's all for now. One change that everyone had probably been hoping for was the allowance of air admittance valves. These are allowed by the IRC, but not by the UPC, which is what was adopted. Air admittance valves are still not allowed in Minnesota. Please contact your local building official with any questions about interpretations, as my opinion doesn't mean squat.
